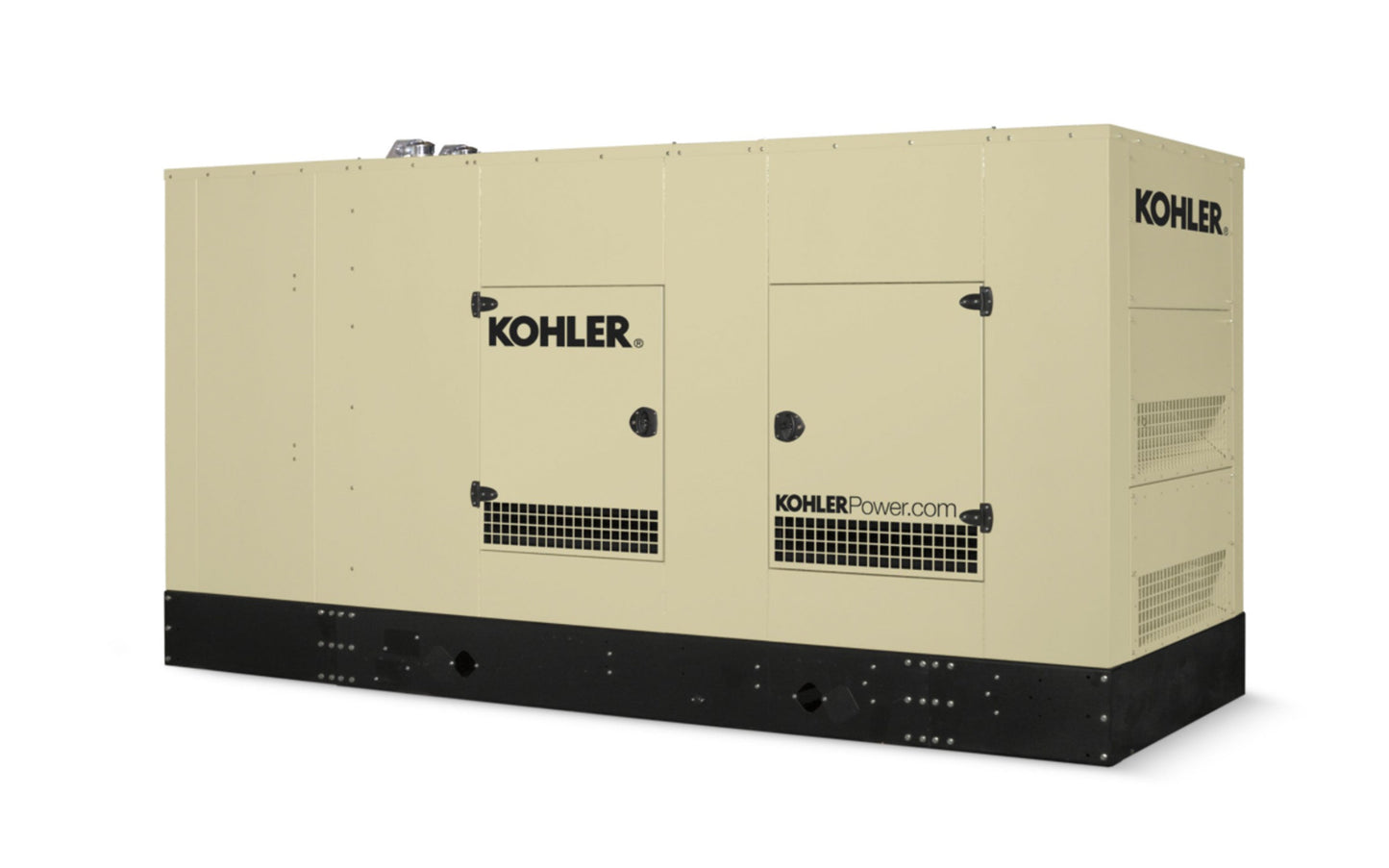

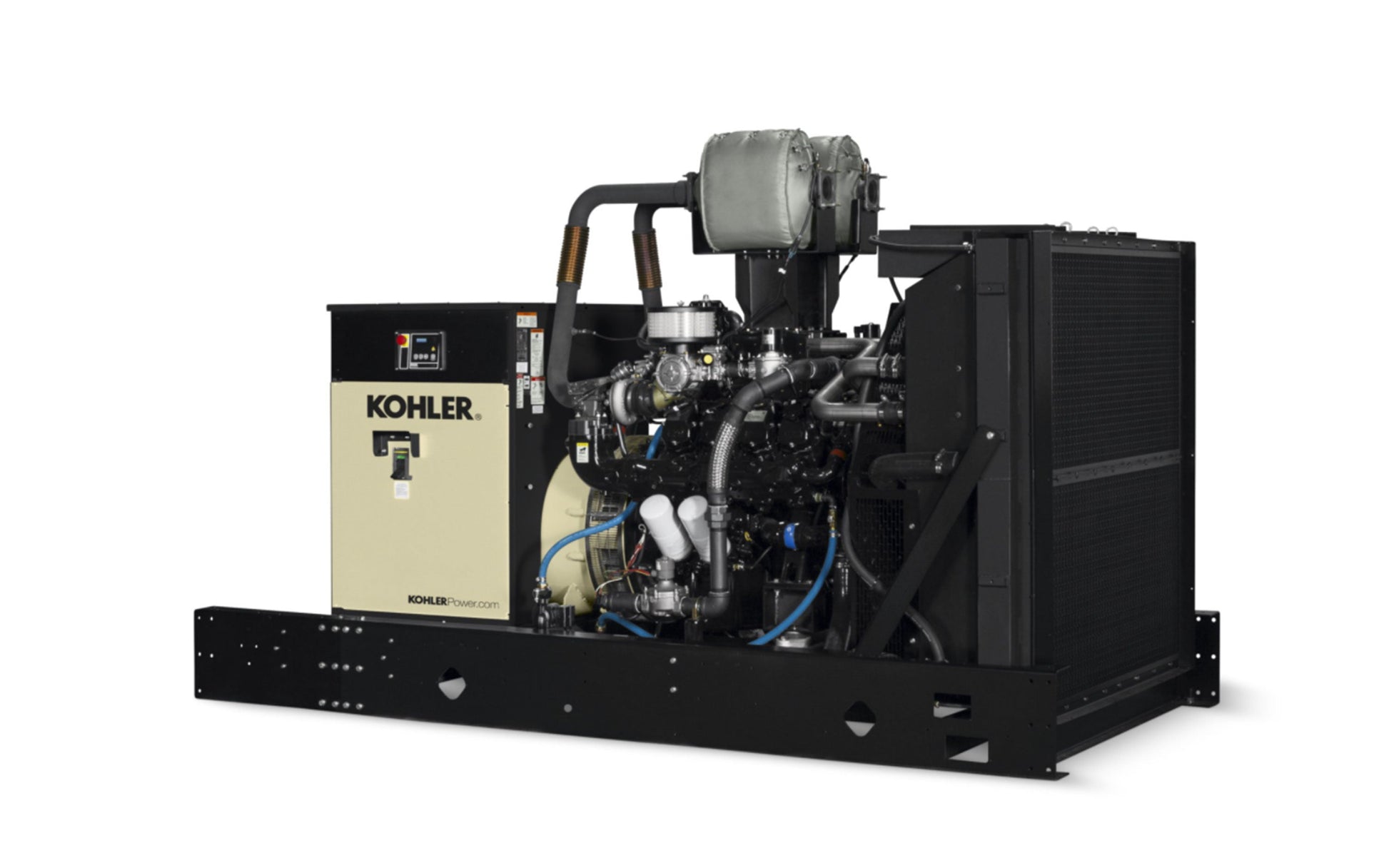

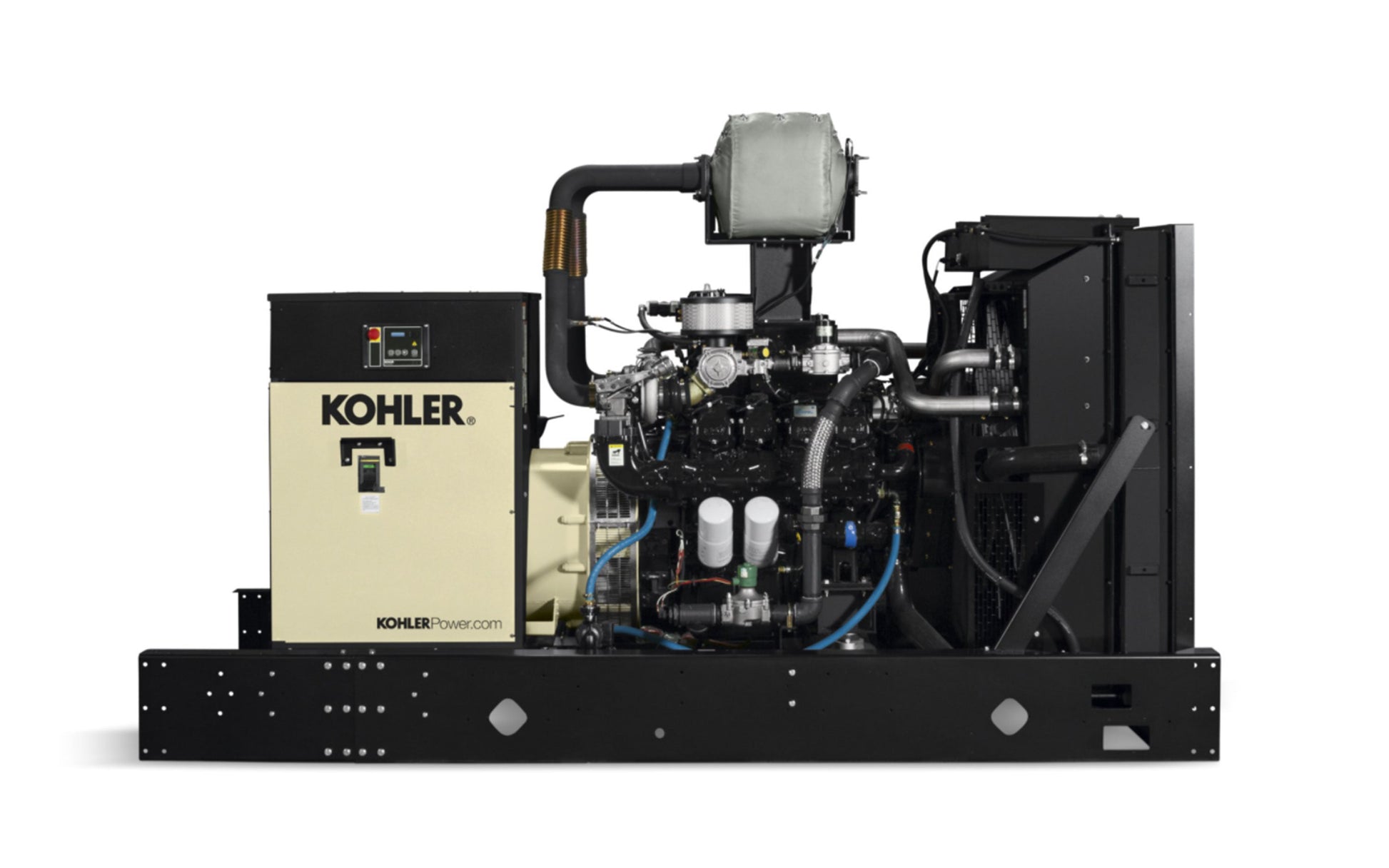

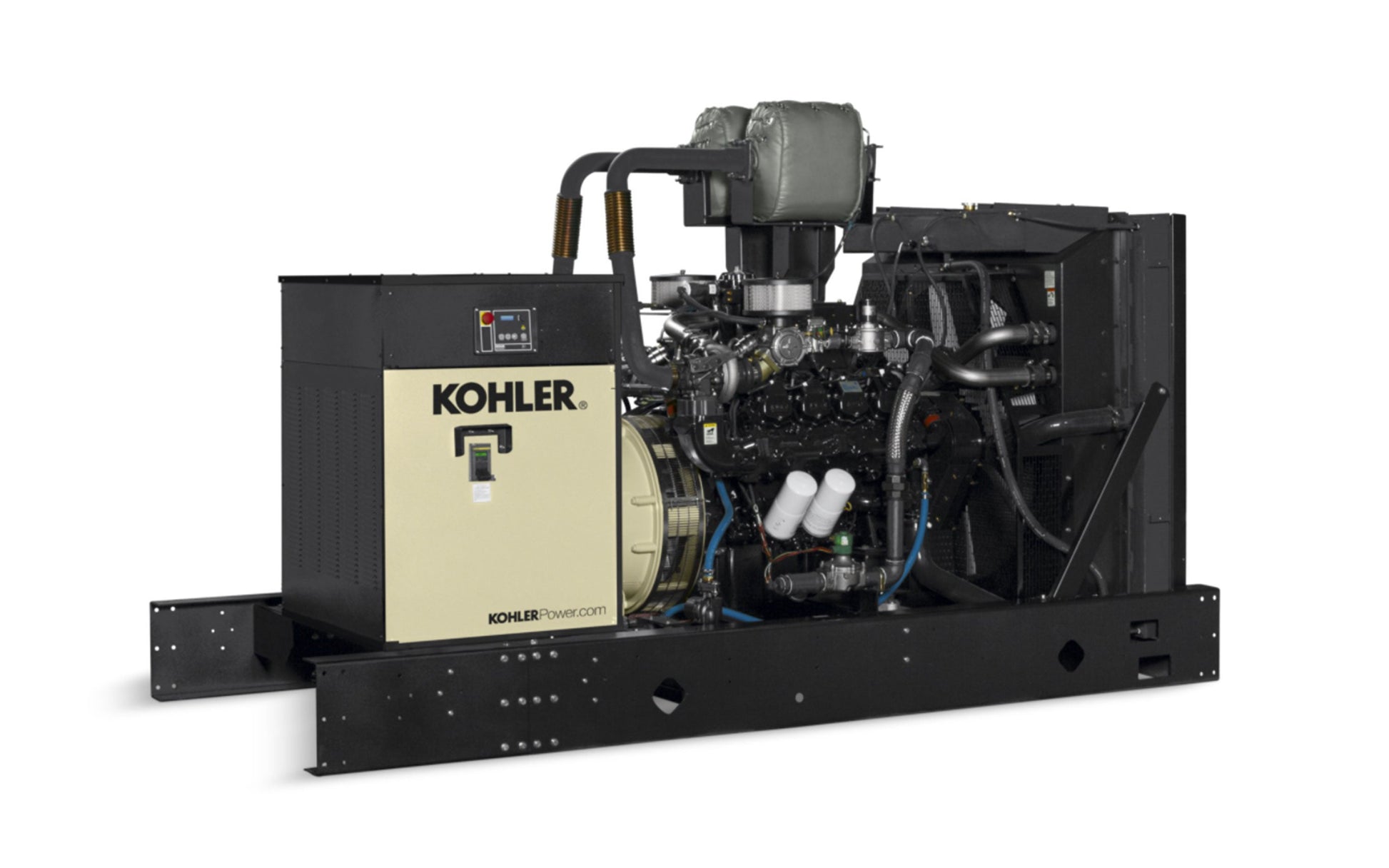

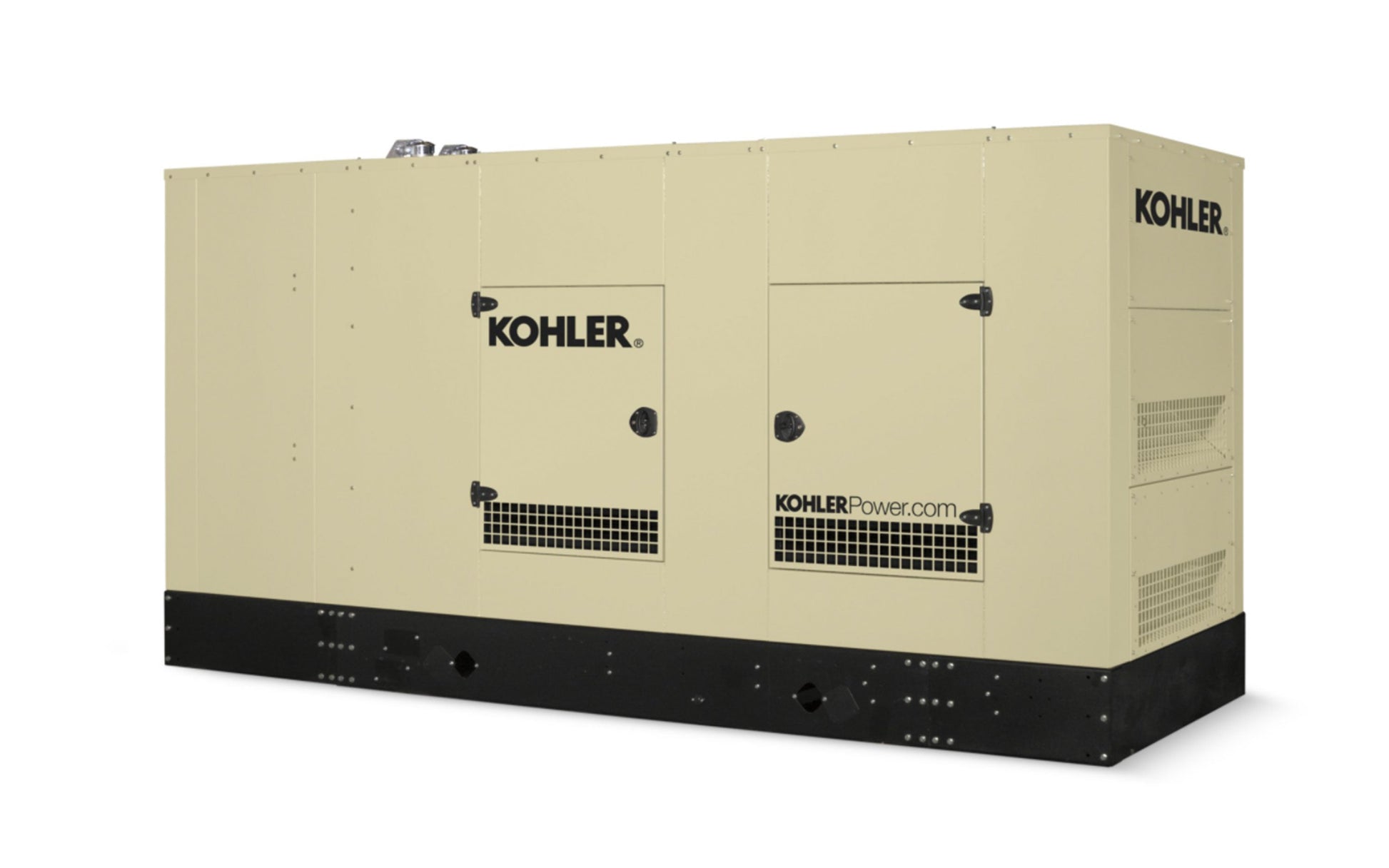

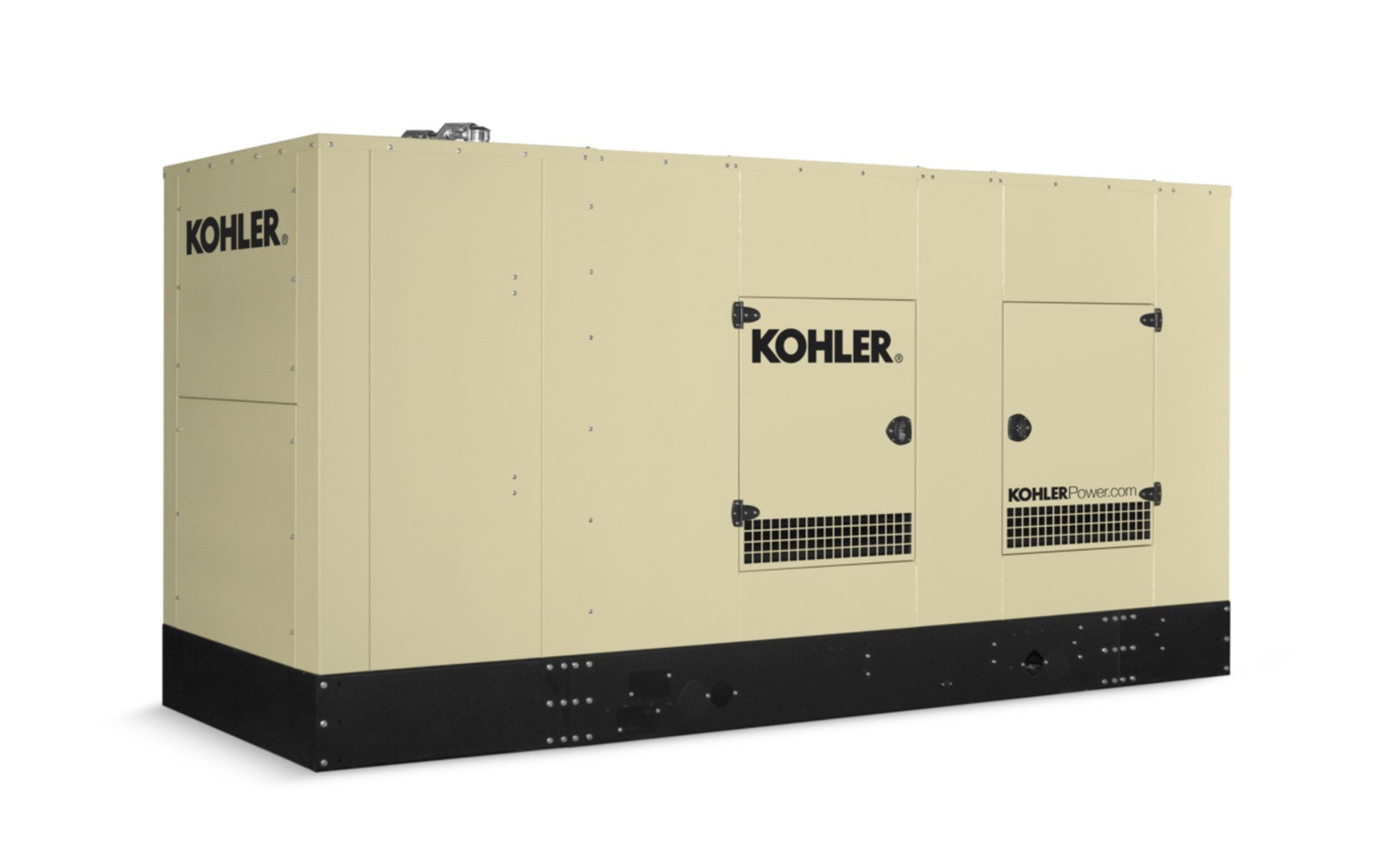

250REZXB, 60 Hz, Propane

250REZXB, 60 Hz, Propane

Fuel Type Propane
Certification US EPA (Certified) Stationary Non-Emergency | US EPA (Certified) Stationary Emergency
Standby Range (kW/kVA) 170-260/213-325
Prime Range (kW/kVA) 225-235/281-294
Frequency 60 Hz
Speed 1800 RPM
Alternator Type Brushless, Permanent-Magnet
Engine Manufacturer Doosan

Fill out my online form.
View full details

STANDARD FEATURES

  • KOHLER Co. provides one-source responsibility for the generating systems and accessories
  • The generator set and its components are prototype-tested, factory-built, and production-tested
  • The 60 Hz generator set offers a UL 2200 listing
  • The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards
  • A one-year limited warranty covers all systems and components. Two-, five-, and ten-year extended warranties are also available
  • Environmental Protection Certified for Stationary and Mobile Emergency and Non-Emergency applications

OTHER FEATURES

  • Hurricane-rated enclosures available
  • 186 mph wind load rating on sound aluminum enclosure

ALTERNATOR FEATURES

  • The unique Fast-Response(TM) X excitation system delivers excellent voltage response and short circuit capability using a rare-earth, permanent magnet (PM)-excited alternator
  • The brushless, rotating-field alternator has broad range reconnect ability
  • NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
  • Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
  • Self-ventilated and drip-proof construction
