125REOZJG, 60 Hz

STANDARD FEATURES

• KOHLER Co. provides one-source responsibility for the generating systems and accessories
• The generator set and its components are prototype-tested, factory-built, and production-tested
• The 60 Hz generator set offers a UL 2200 listing
• The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards
• A one-year limited warranty covers all systems and components. Two- and five-year extended warranties are also available
• Tier 4 Final EPA -Certified for Stationary Emergency and Non-Emergency Applications

OTHER FEATURES

• Kohler designed controllers for guaranteed system integration and remote communication
• The low coolant level shutdown prevents overheating (standard on radiator models only)

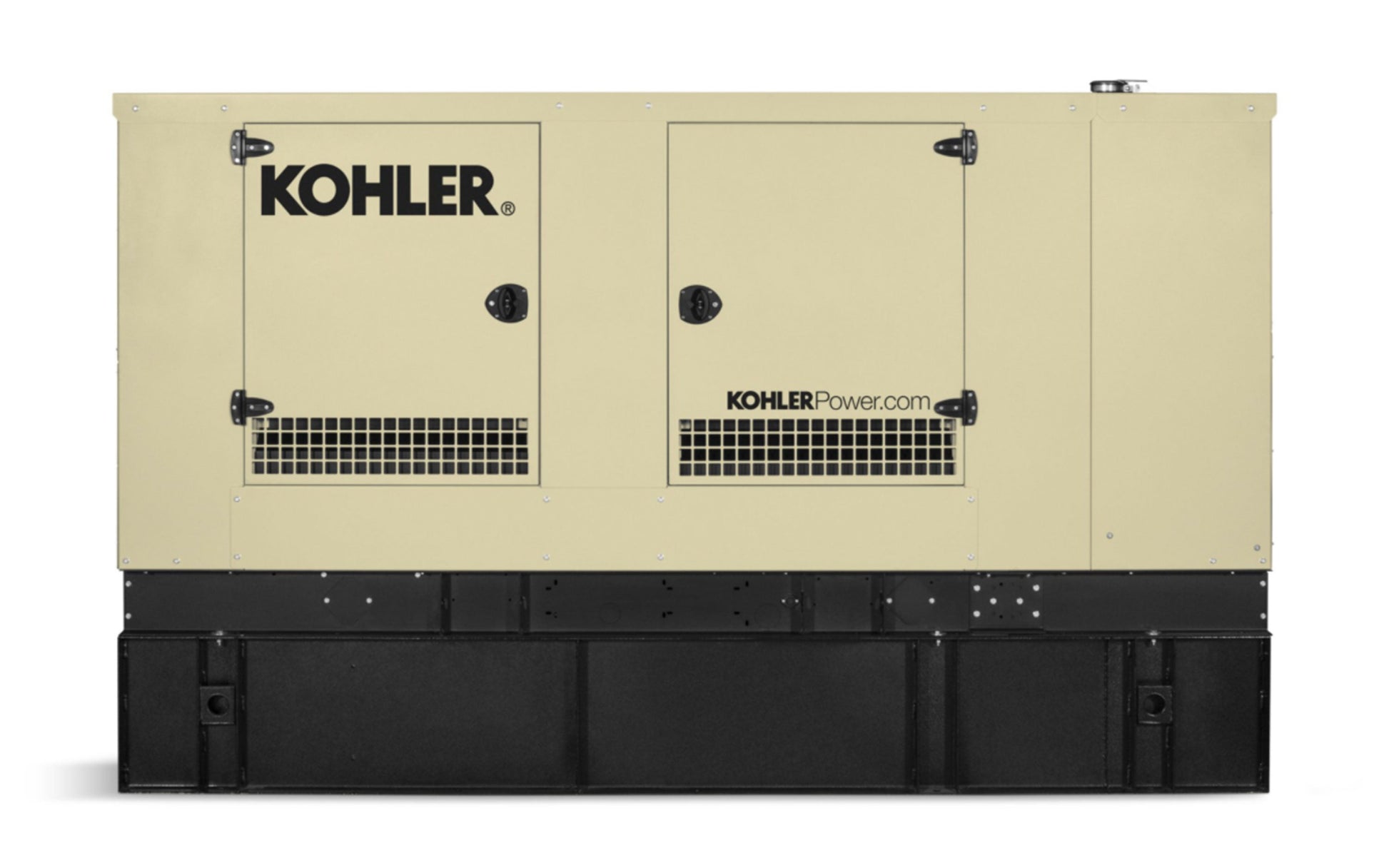

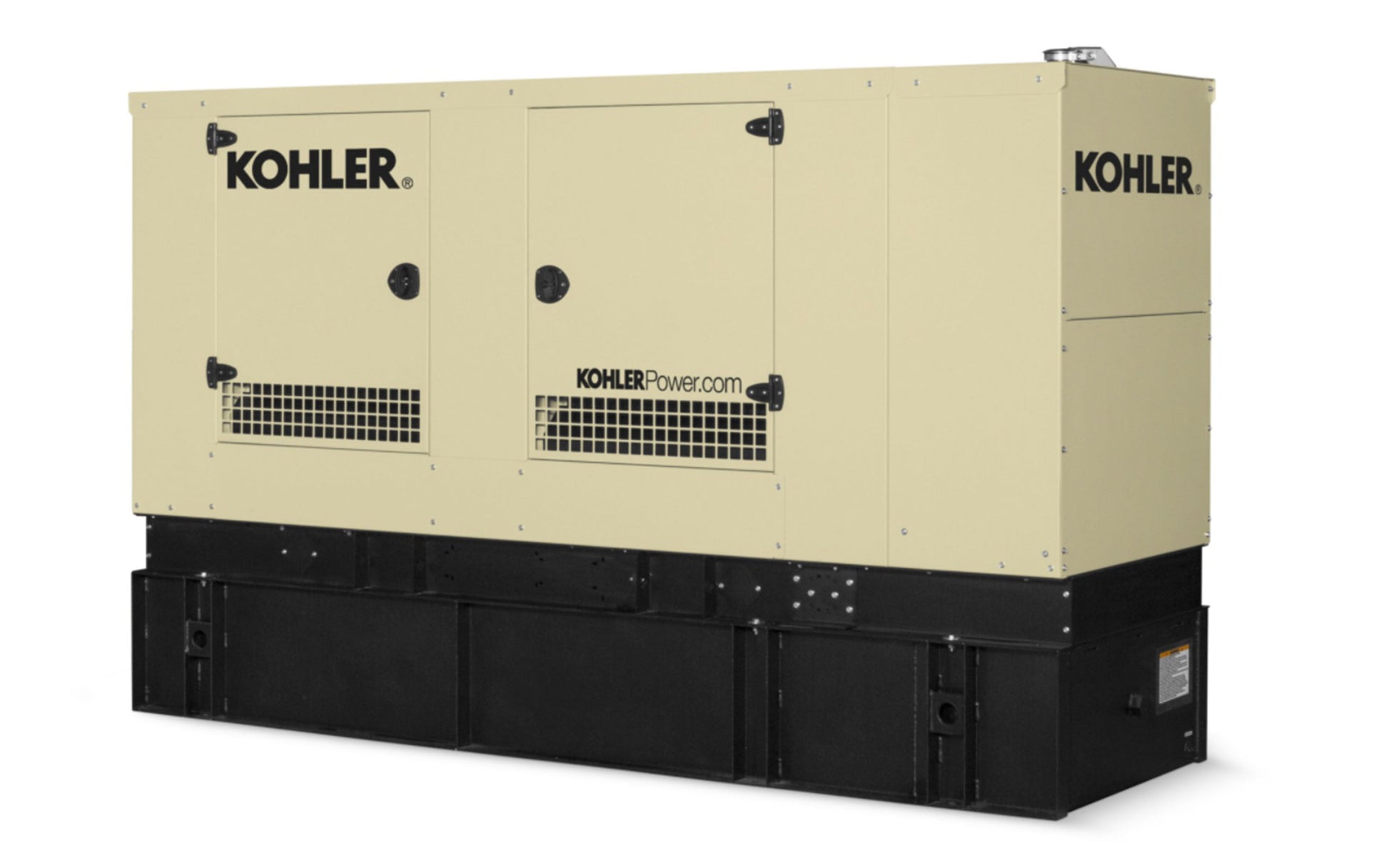

• Durable steel-sound attenuating housing with quiet operation of 71 dB(A) log average @7 m (23 ft.) with full load at the prime rating
• 125% environmental containment basin for oil and coolant and 110% secondary containment tank for fuel
• UL 142 listed subbase fuel tank for 24-hur run time with full load at prime rating (minimum)
• Customer connection panel with main circuit breaker, remote start connection, and emergency stop switch

ALTERNATOR FEATURES

• Kohler's unique Fast-Response(TM) permanent magnet excitation system delivers excellent voltage response and short circuit capability
• NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
• Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
• Self-ventilated and drip-proof construction
• Vacuum-impregnated windings with fungus-resistant epoxy varnish for dependability and long life
• Superior voltage waveform from a two-thirds pitch stator and skewed rotor
