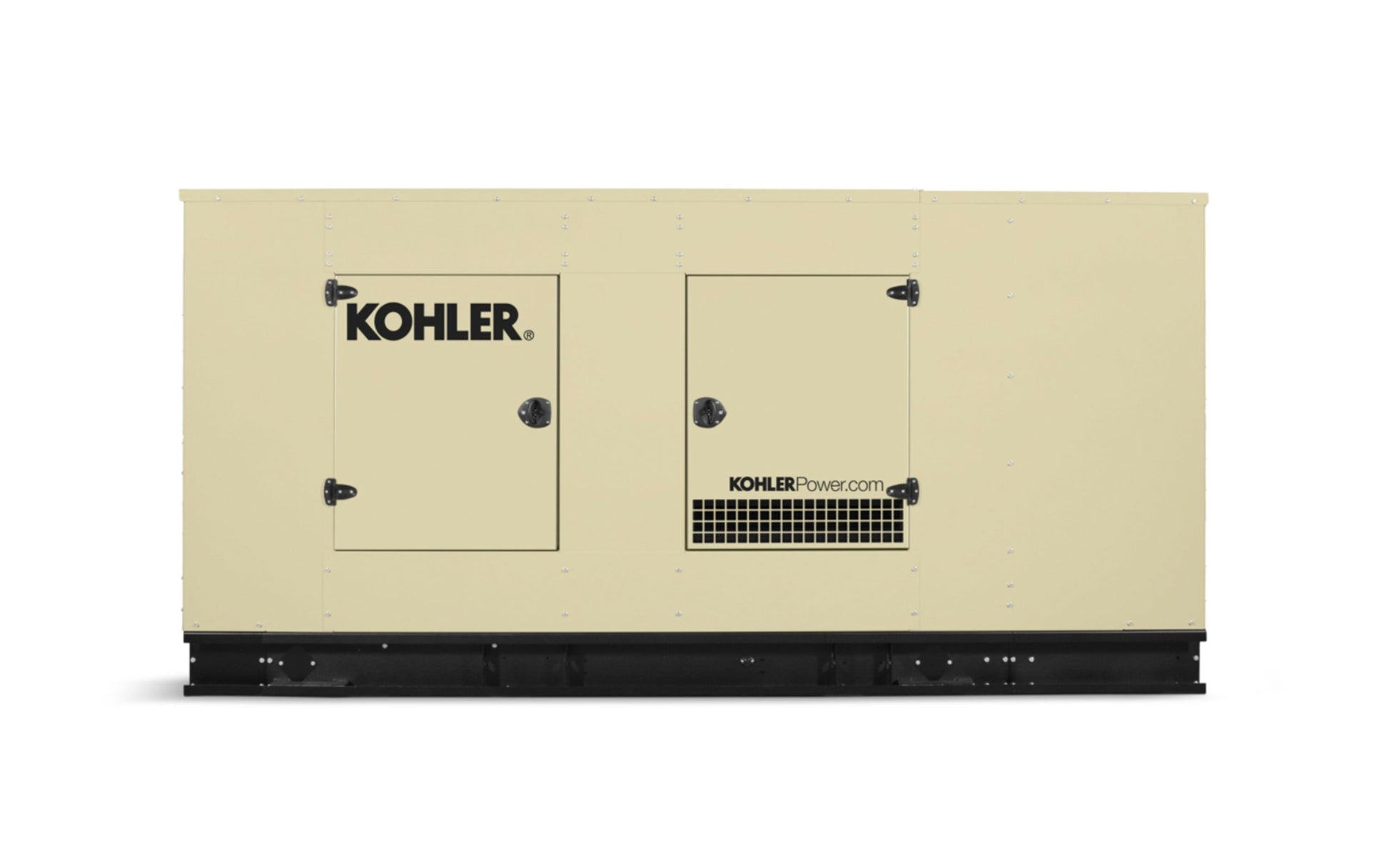

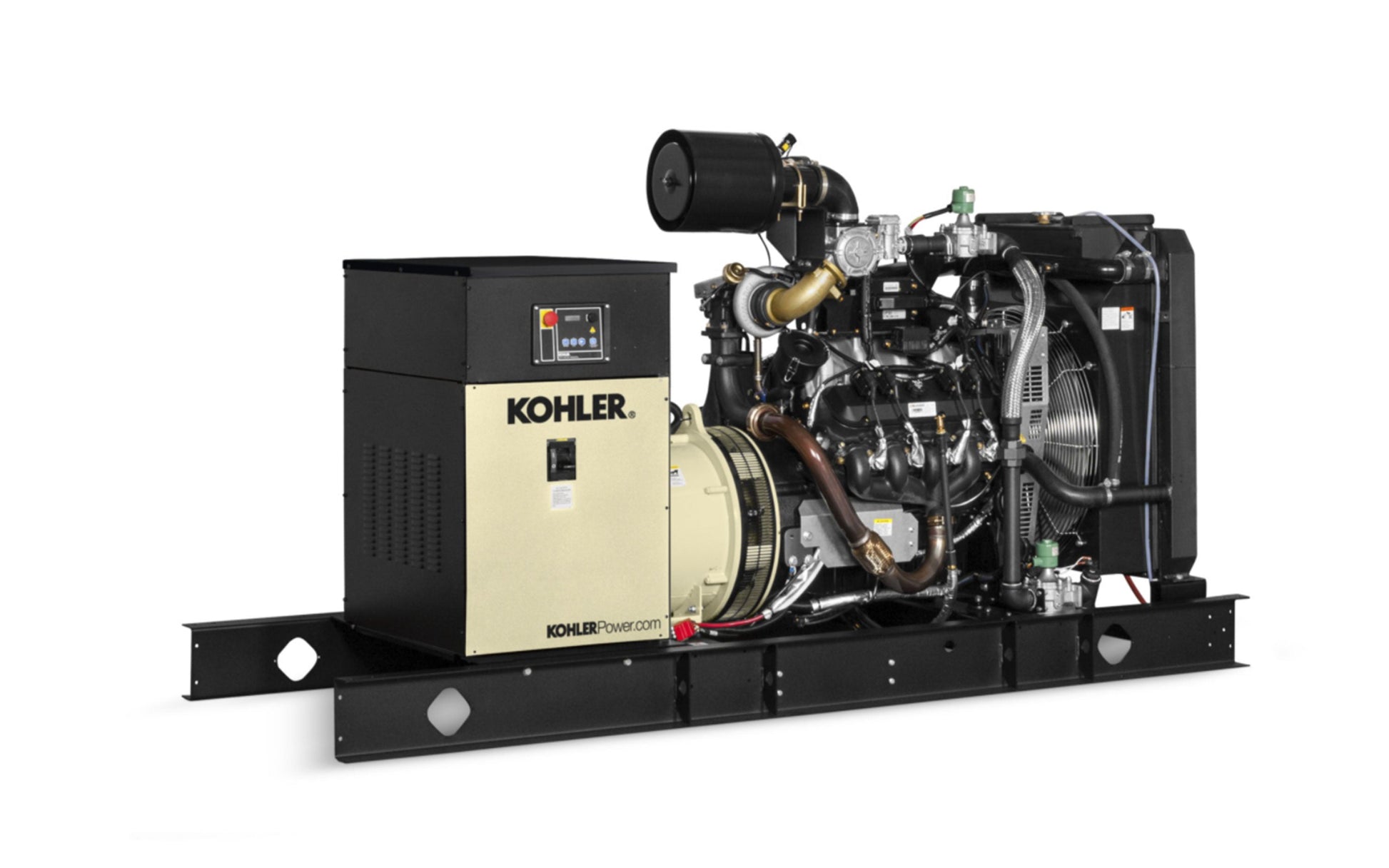

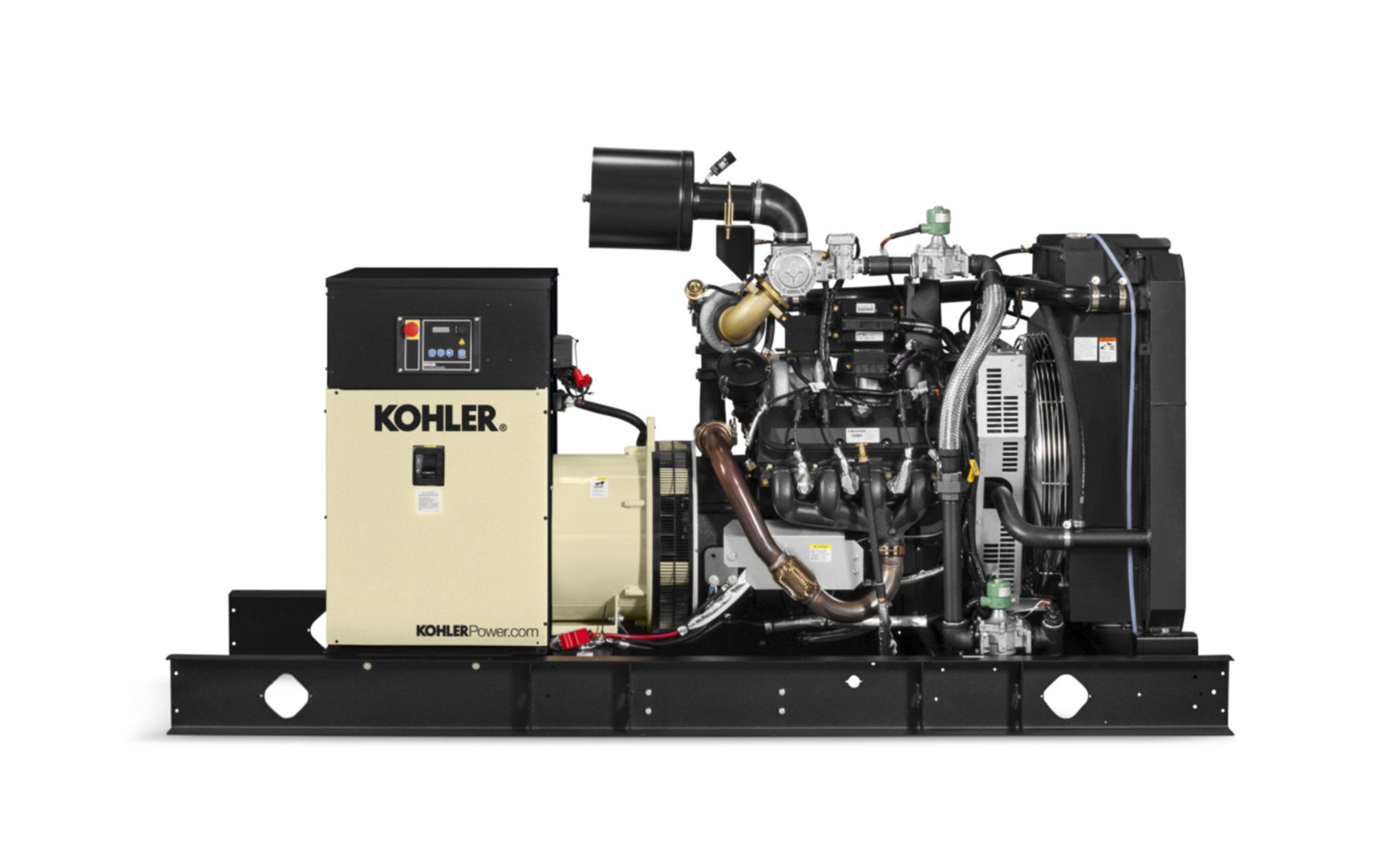

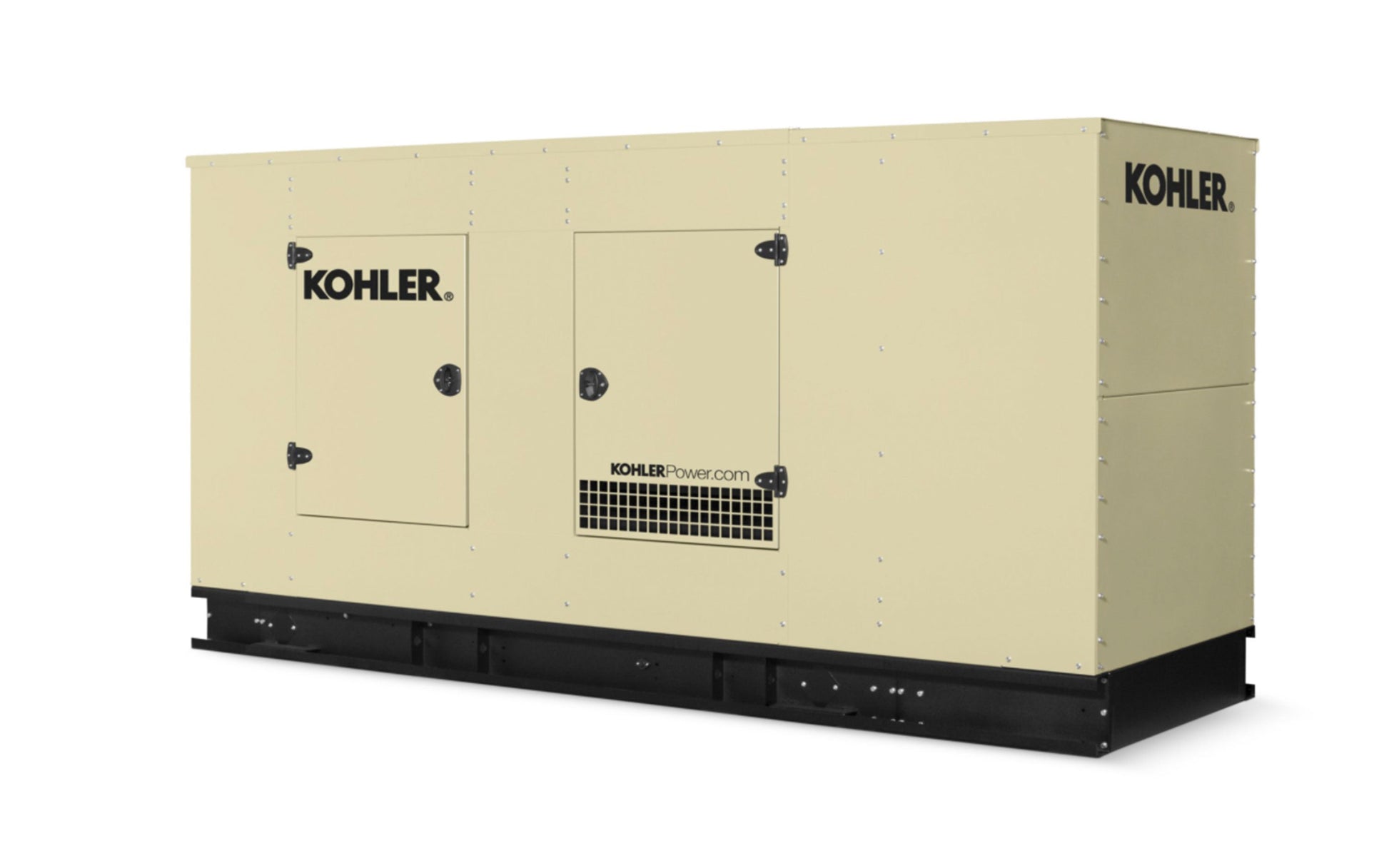

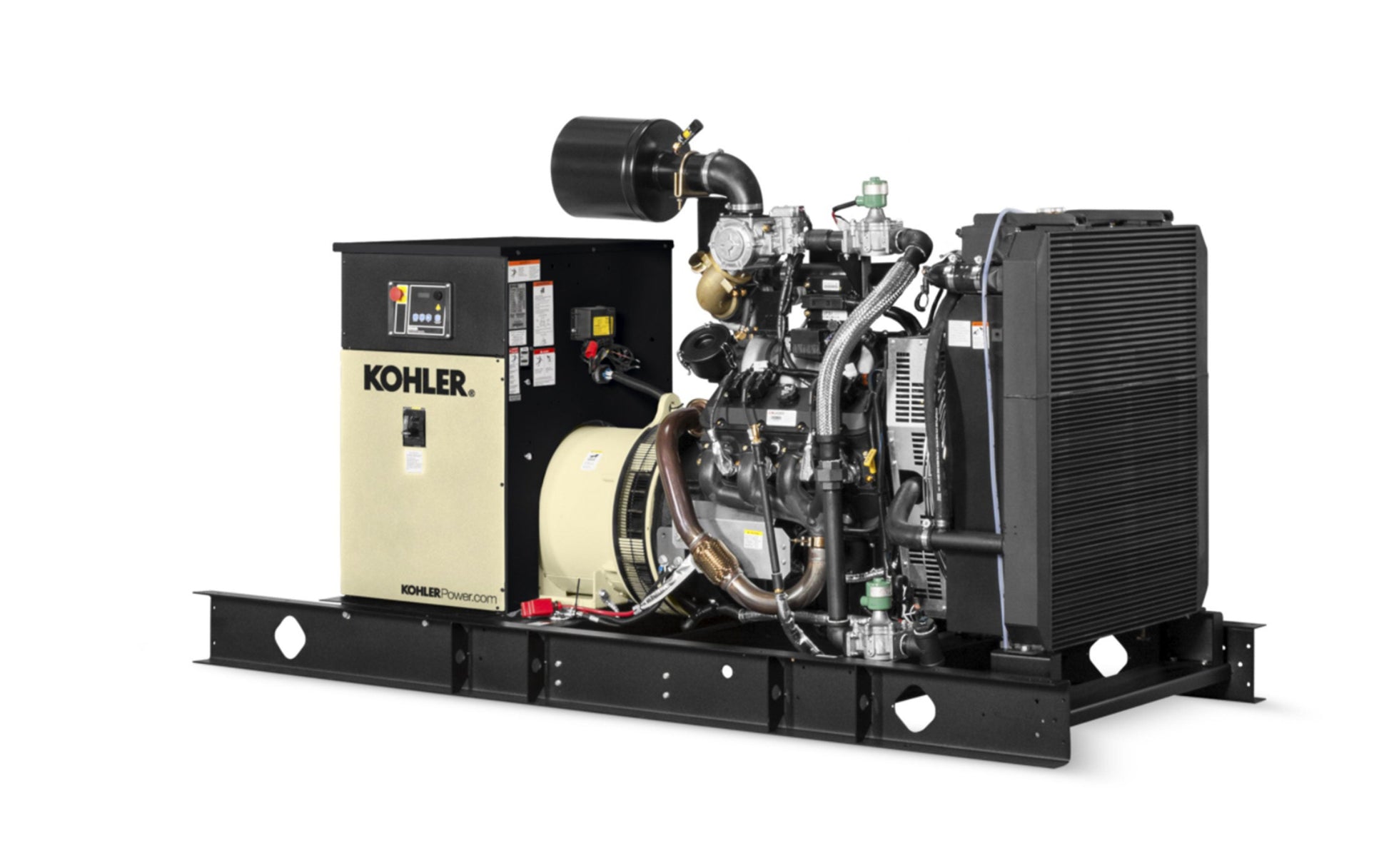

150RZGC, 50 Hz, Dual Fuel

STANDARD FEATURES

• KOHLER Co. provides one-source responsibility for the generating systems and accessories
• The generator set and its components are prototype-tested, factory-built, and production-tested
• A one-year limited warranty covers all systems and components. Two- and five-year extended warranties are also available
• The generator set accepts rated load in one step

OTHER FEATURES

• Kohler designed controllers for guaranteed system integration and remote communication
• The electronic, isochronous governor incorporates an integrated drive-by-wire throttle body actuator delivering precise frequency regulation

ALTERNATOR FEATURES

• Kohler's unique Fast-Response(TM) permanent magnet excitation system delivers excellent voltage response and short circuit capability
• NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
• Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
• Self-ventilated and drip-proof construction
• Vacuum-impregnated windings with fungus-resistant epoxy varnish for dependability and long life
• Superior voltage waveform from a two-thirds pitch stator and skewed rotor
