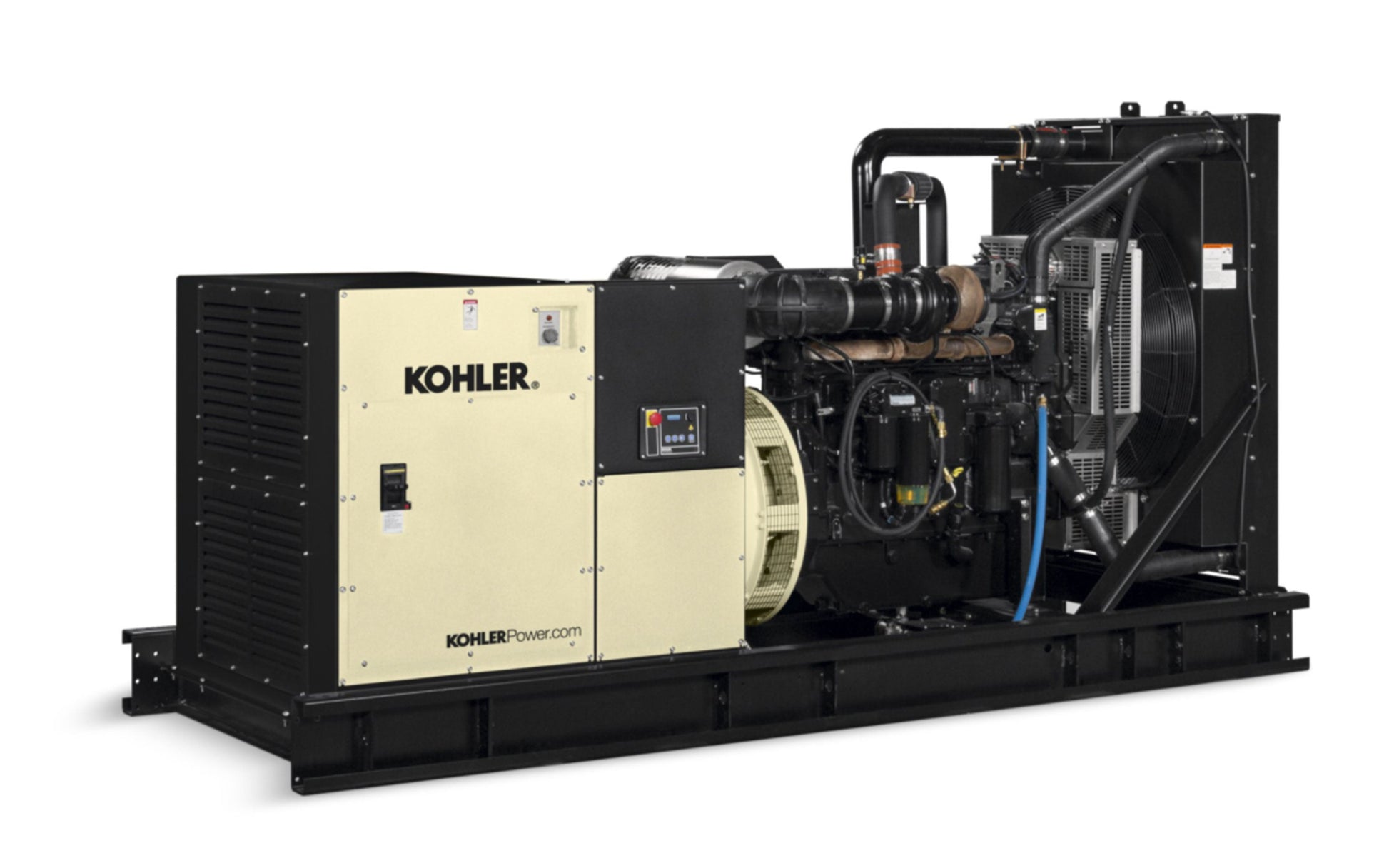

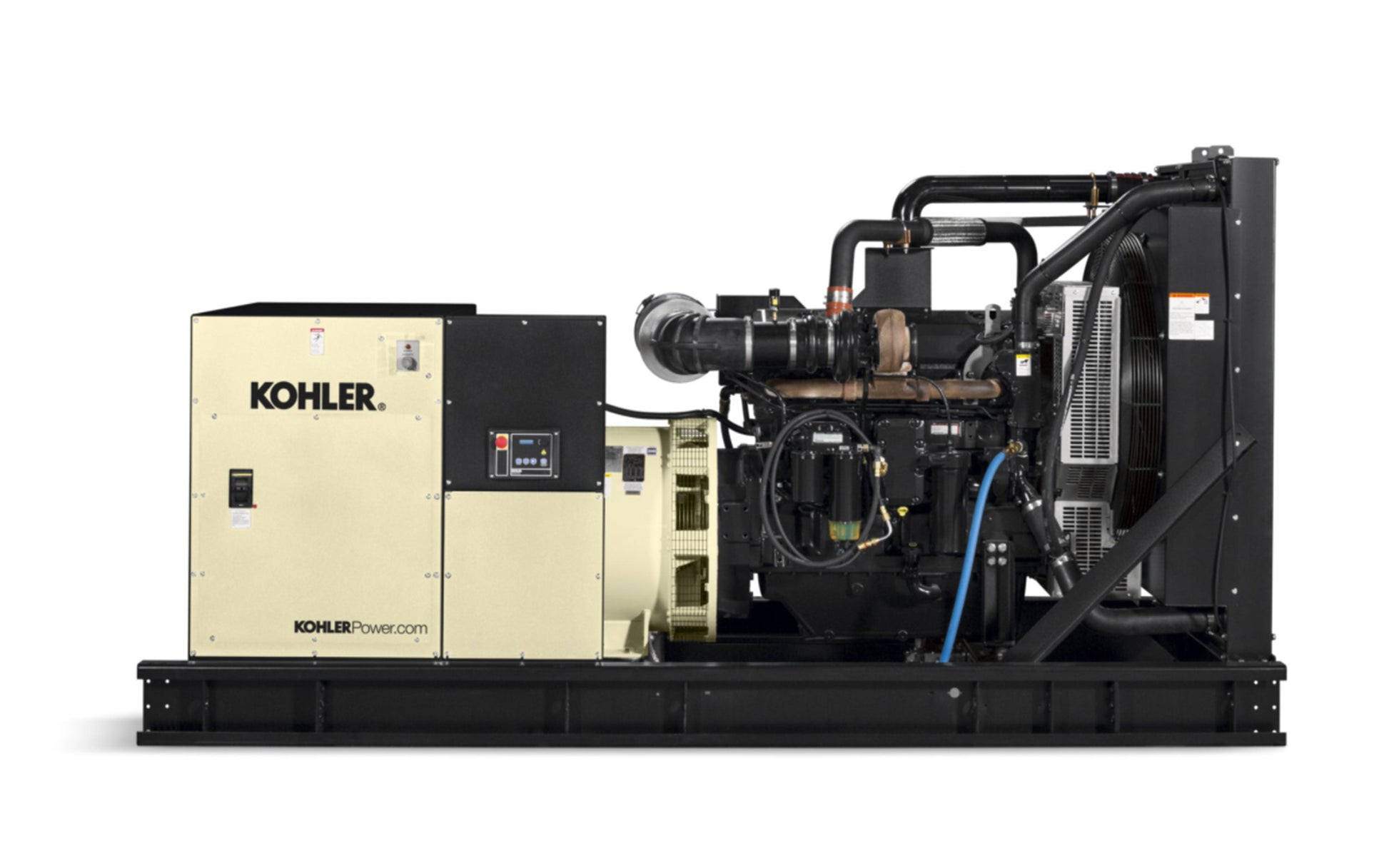

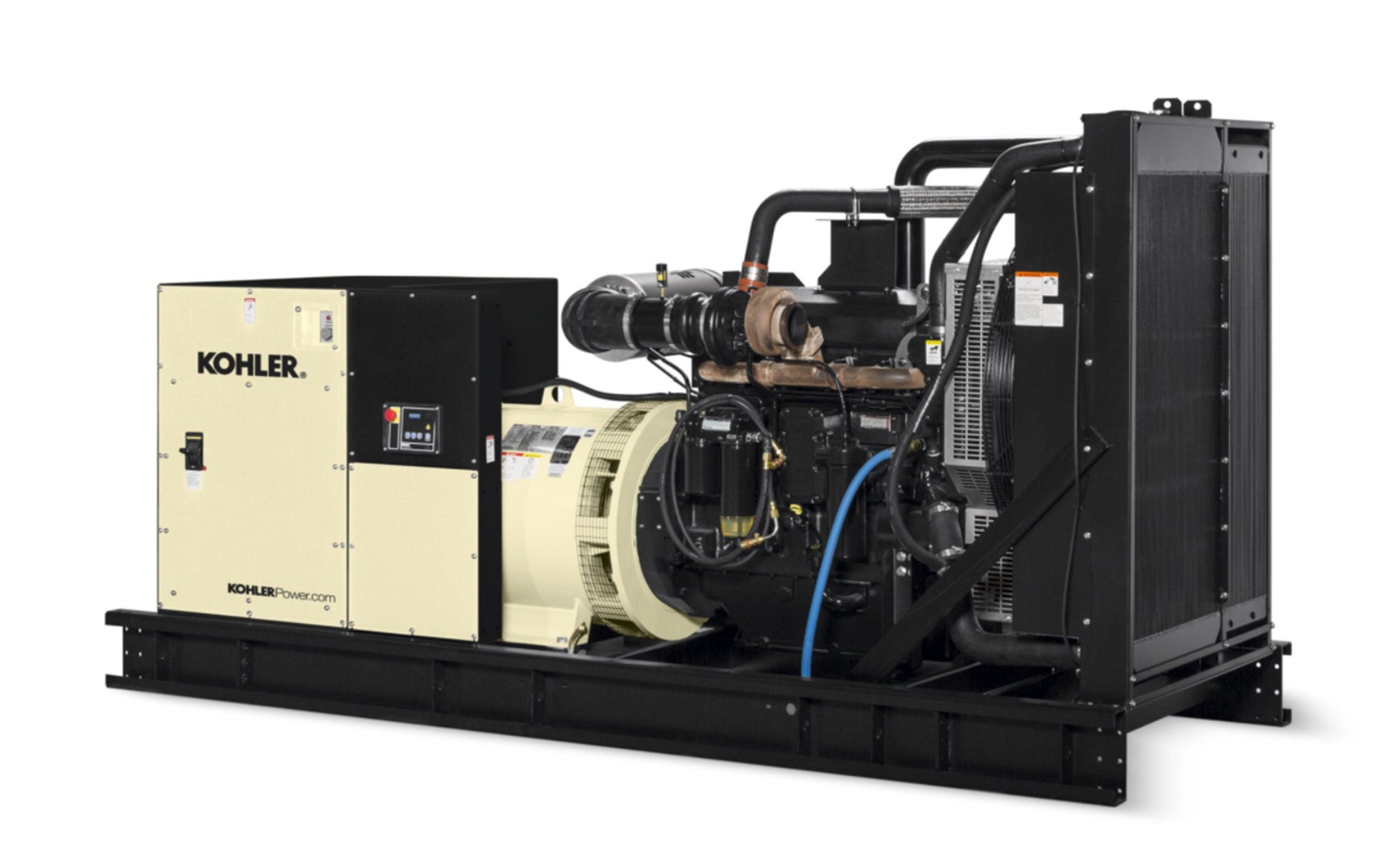

400REOZJ, 60 Hz

400REOZJ, 60 Hz

Fuel Type Diesel
Certification US EPA (Certified) Stationary Emergency
Standby Range (kW/kVA) 315-400/394-500
Prime Range (kW/kVA) 285-365/356-456
Frequency 60 Hz
Speed 1800 RPM
Alternator Type Brushless, Permanent-Magnet Pilot Exciter
Engine Manufacturer John Deere

Fill out my online form.
View full details

STANDARD FEATURES

  • KOHLER Co. provides one-source responsibility for the generating systems and accessories<
  • The generator set and its components are prototype-tested, factory-built, and production-tested<
  • The 60 Hz generator set offers a UL 2200 listing<
  • The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards<
  • A one-year limited warranty covers all systems and components. Two- and five-year extended warranties are also available<
  • The generator set complies with Environmental Protection Agency (EPA) emergency stationary emissions requirements<

OTHER FEATURES

  • Kohler designed controllers for guaranteed system integration and remote communication<
  • The low coolant level shutdown prevents overheating (standard on radiator models only)<
  • Integral vibration isolation eliminates the need for under-unit vibration spring isolators<

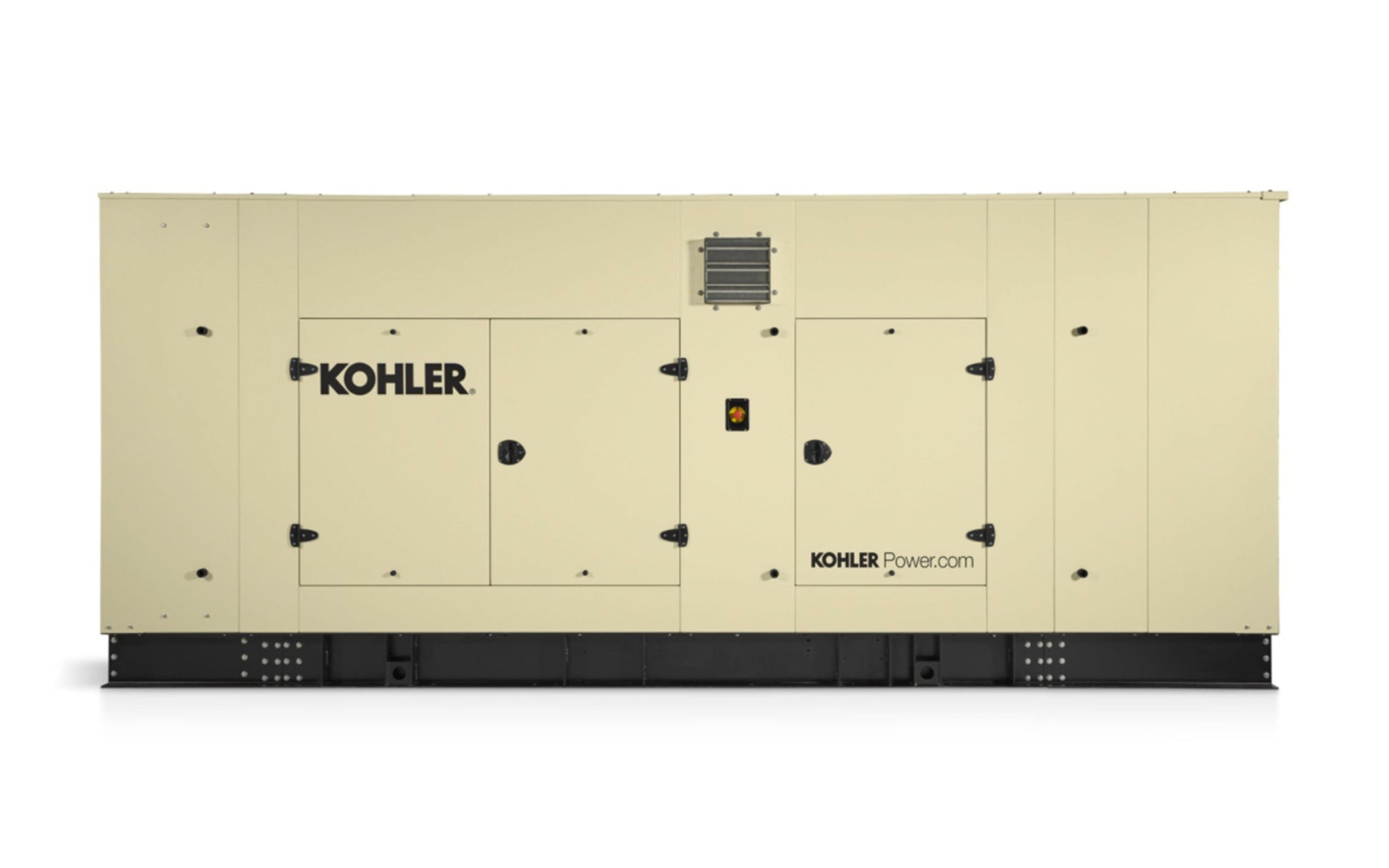

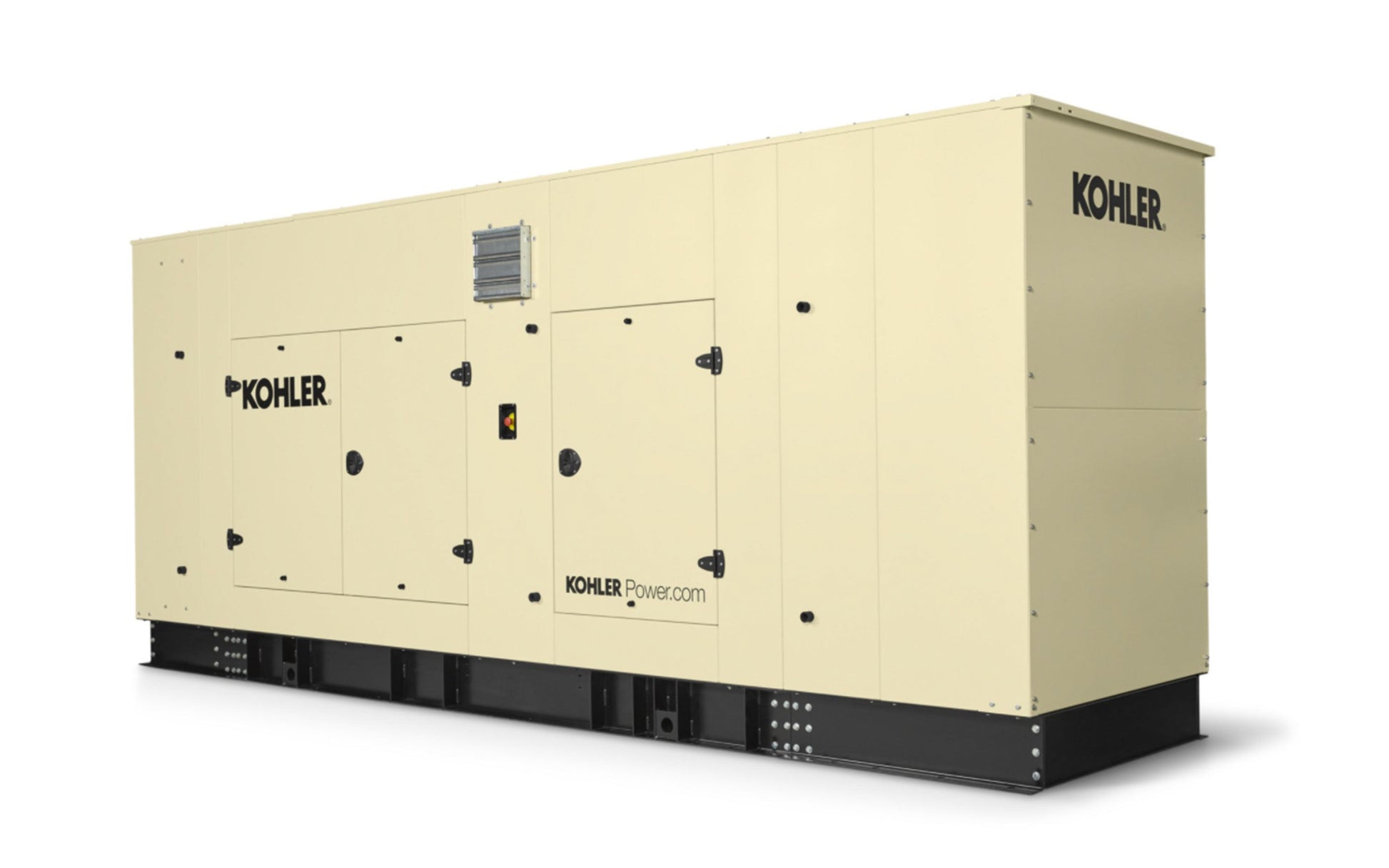

  • Durable weather, sound, and hurricane-rated enclosures available; 181 mph wind load rating on sound aluminum enclosure<
  • Various sizes of UL 142 listed subbase fuel tanks available<
  • Multiple circuit breaker configurations available<

ALTERNATOR FEATURES

  • Kohler's unique Fast-Response(TM) permanent magnet excitation system delivers excellent voltage response and short circuit capability<
  • NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting<
  • Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field<
  • Self-ventilated and drip-proof construction<
  • Vacuum-impregnated windings with fungus-resistant epoxy varnish for dependability and long life<
  • Superior voltage waveform from a two-thirds pitch stator and skewed rotor<
