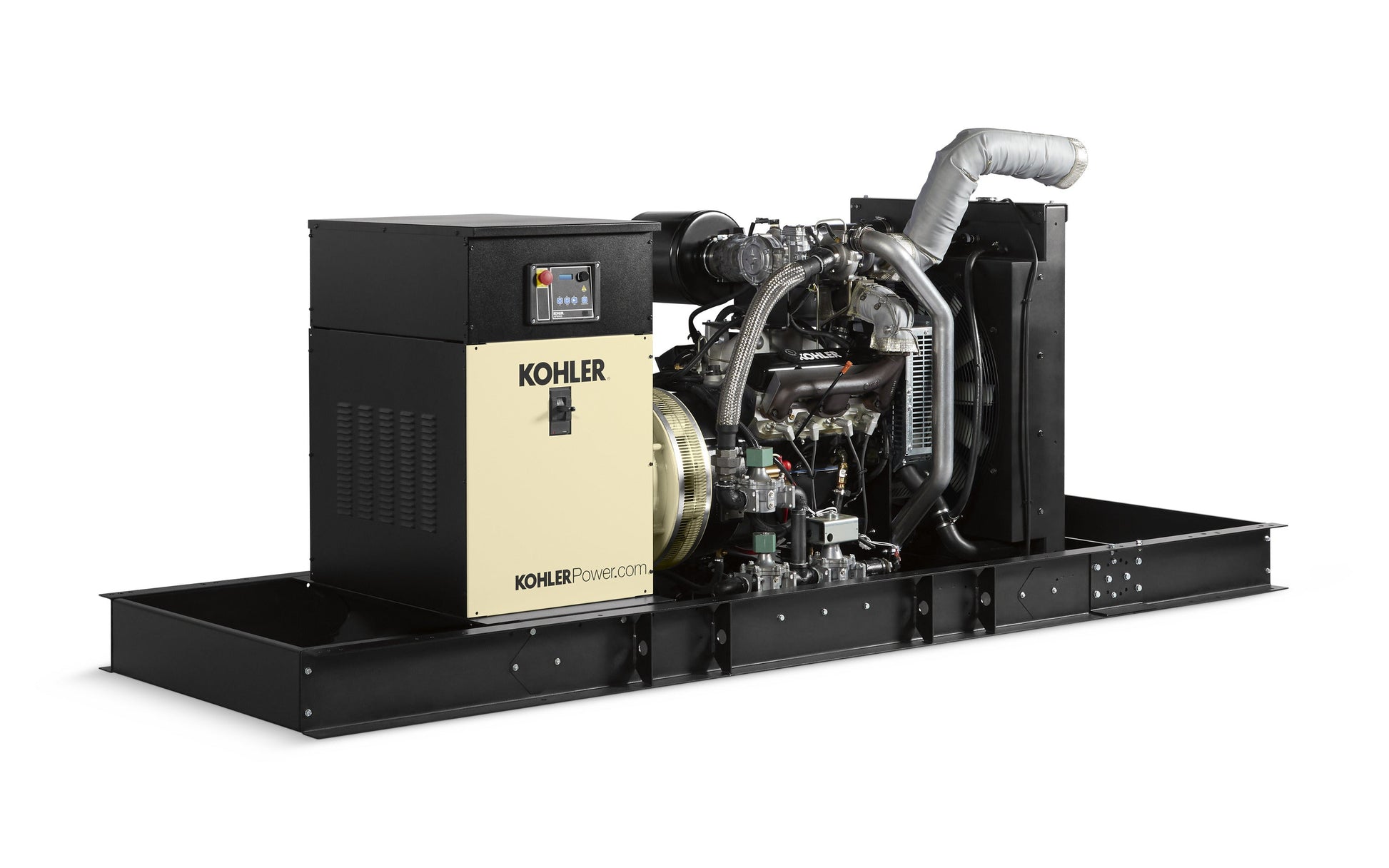

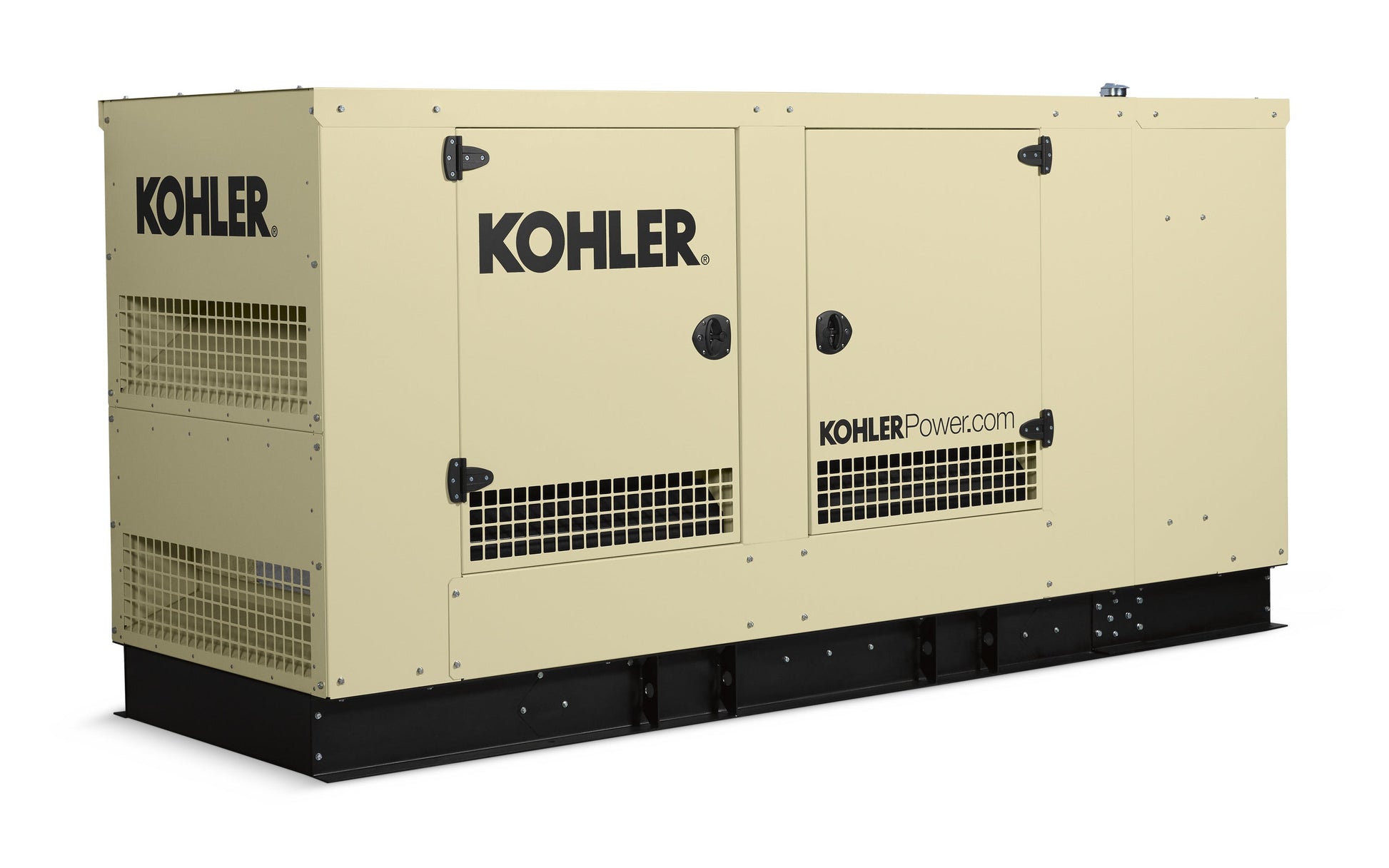

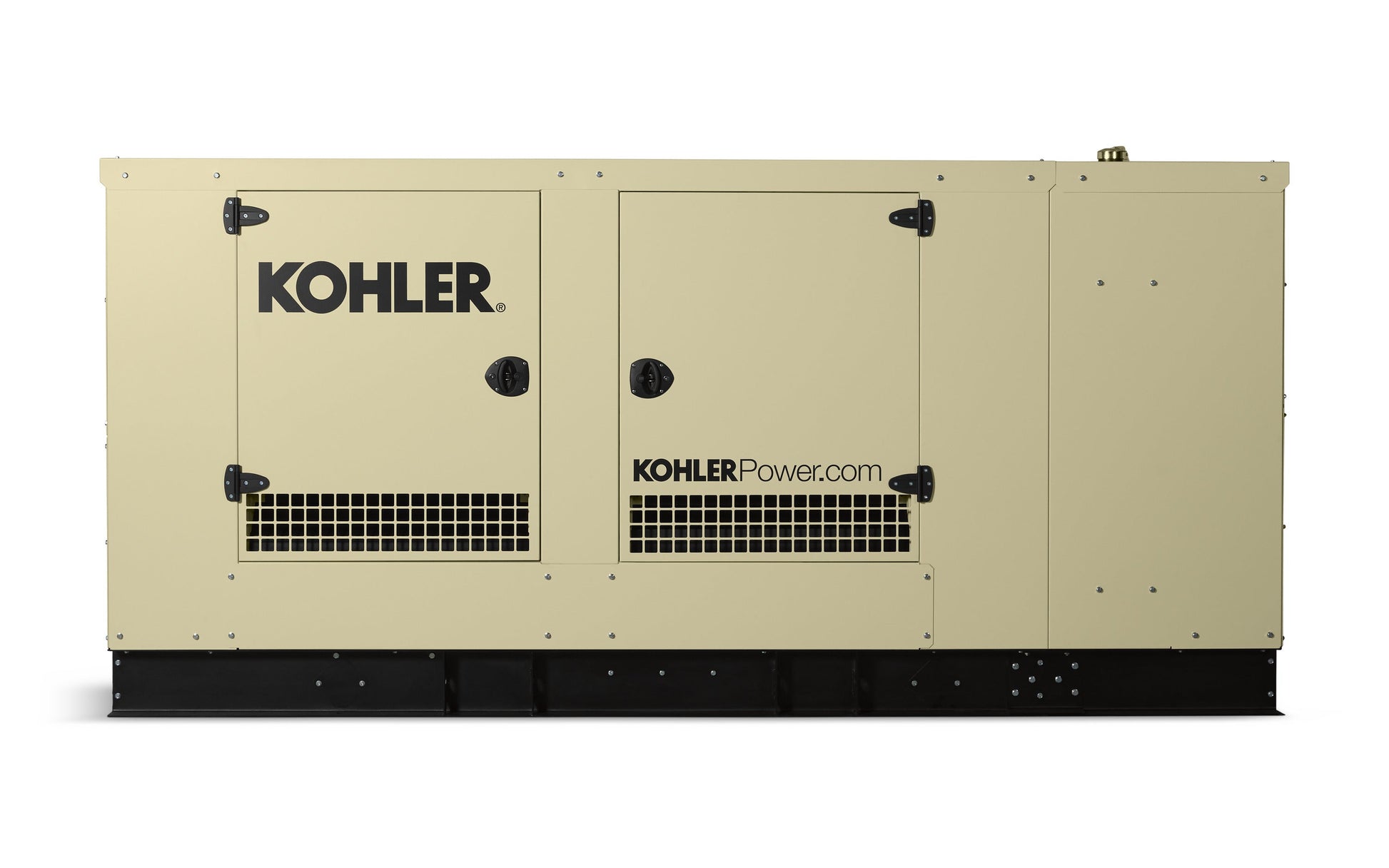

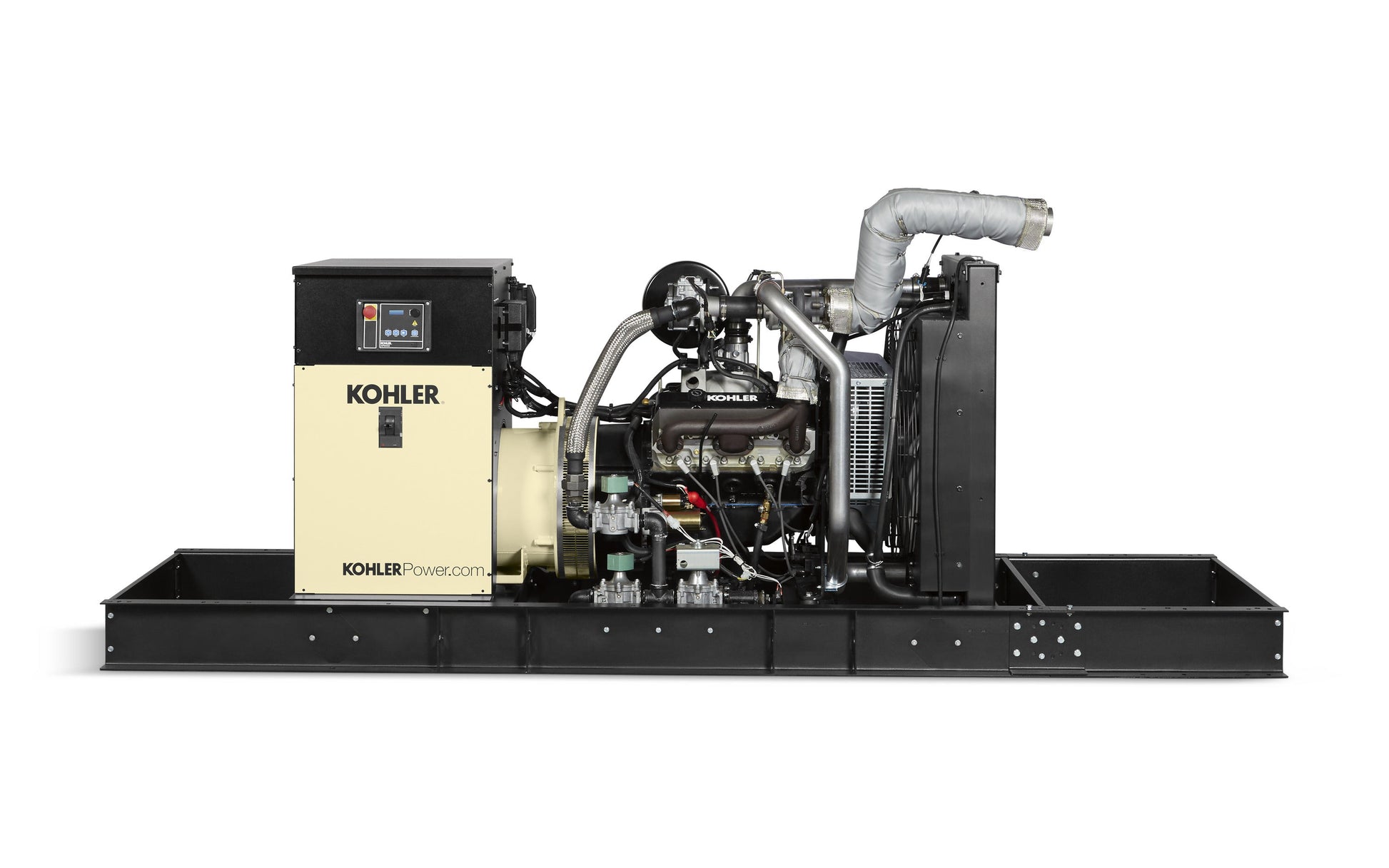

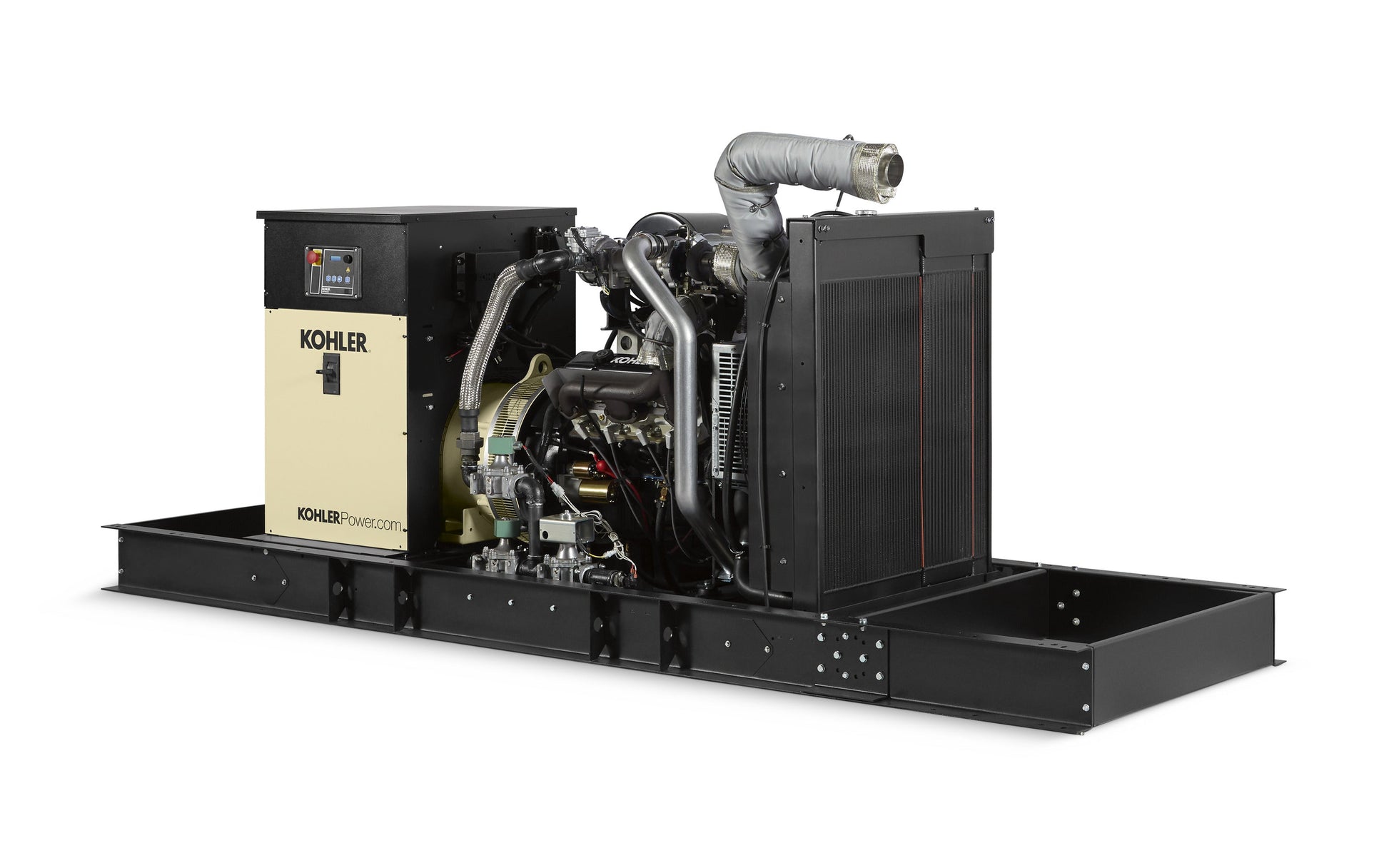

KG80, 50 Hz, Dual Fuel

KG80, 50 Hz, Dual Fuel

Fuel Type Dual Fuel
Certification Non-Certified
Standby Range (kW/kVA) 44-63/44-79
Prime Range (kW/kVA) /
Frequency 50 Hz
Speed 1800 RPM
Alternator Type Brushless, Rare-Earth, Permanent-Magnet
Engine Manufacturer Kohler

Fill out my online form.
View full details

STANDARD FEATURES

  • KOHLER Co. provides one-source responsibility for the generating systems and accessories
  • The generator set and its components are prototype-tested, factory-built, and production-tested
  • CSA Approval is available
  • The generator set accepts rated load in one step

OTHER FEATURES

  • Kohler designed controllers for one-source system integration and remote communication
  • The electronic, isochronous governor incorporates an integrated drive-by-wire throttle body actuator delivering precise frequency regulation
  • Winner of the 2020 Silver Product of the Year Award from Consulting-Specifying Engineer (CSE) magazine

ALTERNATOR FEATURES

  • Kohler's unique Fast-Response(TM) permanent magnet excitation system delivers excellent voltage response and short circuit capability
  • NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
  • Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
  • Self-ventilated and drip-proof construction
